ART Pro Audio PDB - Passive Direct Box – balanced – line / speaker level inputs

A good quality direct box converts high impedance unbalanced signals (guitars, basses, keyboards, etc.) into a high quality low-noise balanced XLR connection perfect for mixers, DAW's and other sources. The PDB is tour-rugged, and an indespensible tool for live music and recording, everybody should have one.

In the words of ART:

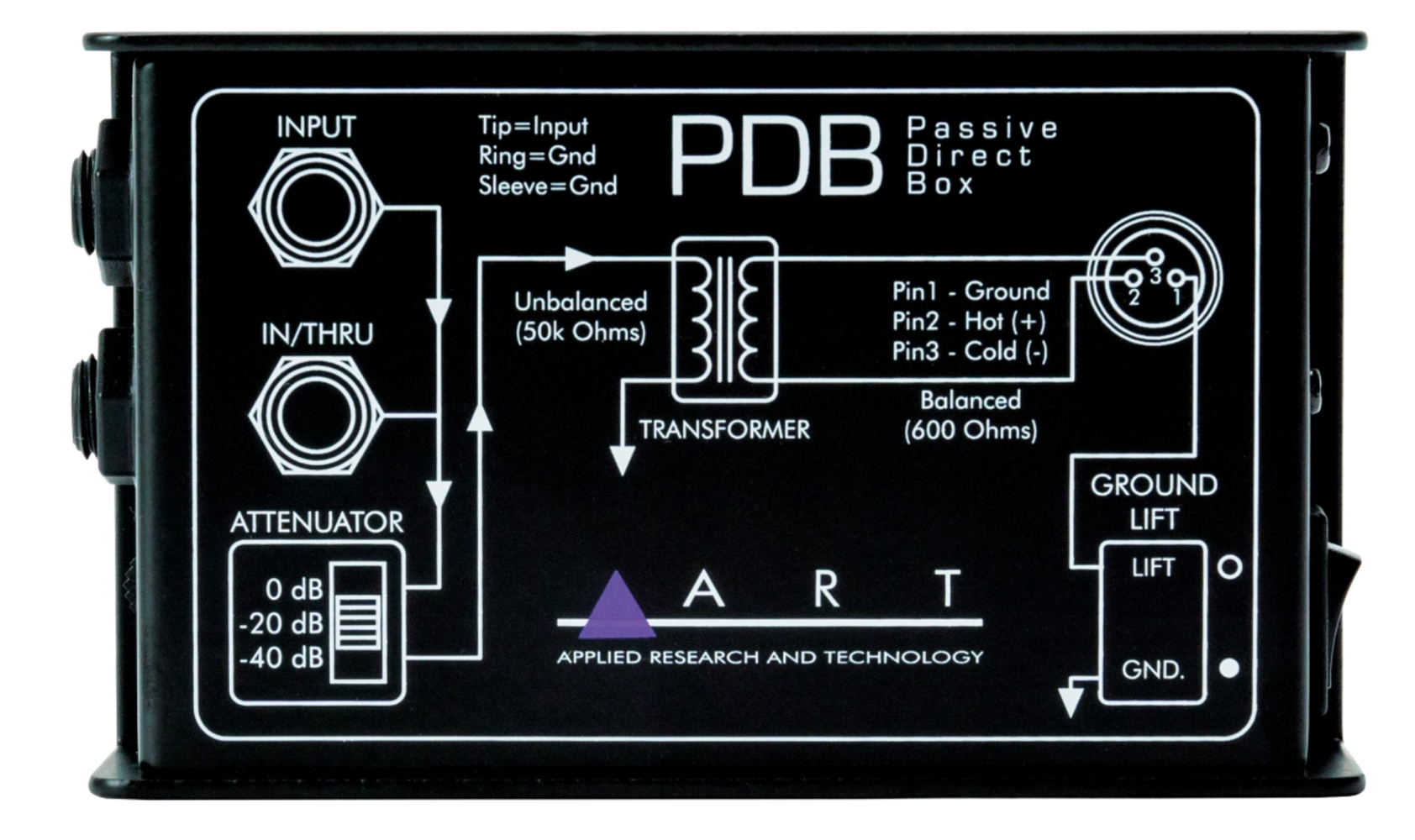

The PDB is a passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.

The input signal is sent to a transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage.

A switchable ground lift helps to eliminate hum, and switchable attenuation offers up to 40 dB of gain reduction.

As a fully passive design, the PDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.

Packed into a stage-proof steel enclosure, the PDB provides a high-fidelity connection to a mixer, PA system, or audio interface.

Features

• 1/4" TS Input and Thru Connectors
• Balanced XLR Output
• Switchable Attenuation (-20 dB, -40 dB) and Ground Lift
• Passive Design - No Power Required
• Rugged Steel Case
